Εγγύηση | 3 Έτη |
Κατασκευαστής CPU | Intel |
Socket | 1700 |
Chipset | Intel B760 |
Μέγεθος Μητρικής | Micro ATX |
Τύπος Μνήμης | DDR4 |
Dimm Slots | 4 |
Ταχύτητες Μνήμης | Max. 128GB 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/ 3600(OC)/3466(OC)/3400(OC)/ 3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP), OptiMem II, * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration |
PCI Express 4.0 x16 | 1 |
Πλήθος SATA III 6Gb/s | 4 |
Εσωτερικές Συνδέσεις | Fan and Cooling-related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 2 x 4-pin Chassis Fan headers, Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Storage related: 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB: 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 1 x USB 2.0 header supports 1 additional USB 2.0 port, Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x LPT header, 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel header with Chassis intrude function. |
Έξοδοι USB 2.0 | 7 |
Έξοδοι USB 3.2 | 5 |

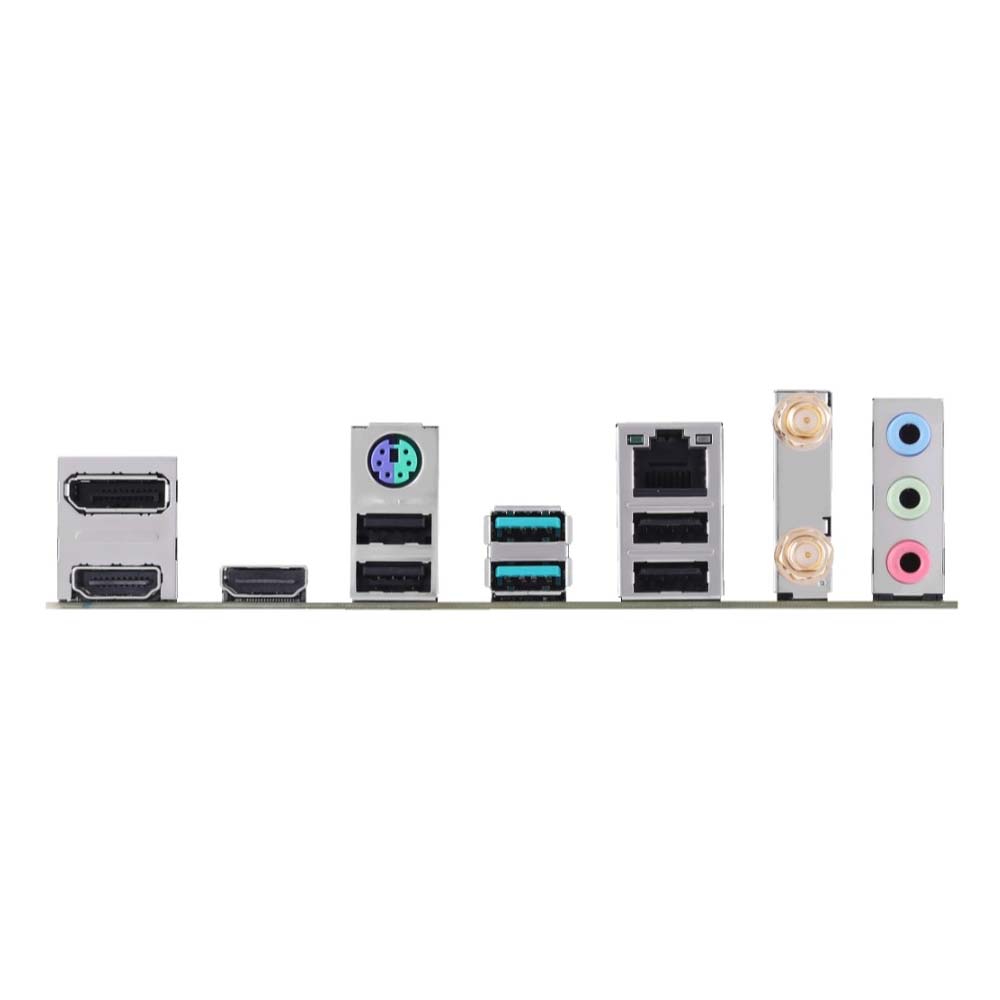

Έξοδοι Γραφικών | 1 x DisplayPort v1.4, 2 x HDMI v2.1, Graphics specifications may vary between CPU types, Supports max. 4K @60Hz as specified in DisplayPort 1.4, Supports 4K @60Hz as specified in HDMI® 2.1. |
Wireless | 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth v5.2 |
Ethernet (LAN) | 1 x Realtek 2.5Gb |
Κάρτα Ήχου | Realtek 7.1 Surround Sound High Definition Audio CODEC: - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, - Supports up to 24-Bit/192 kHz playback, Audio Features: - Audio Shielding, - Premium audio capacitors, - Dedicated audio PCB layers, A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

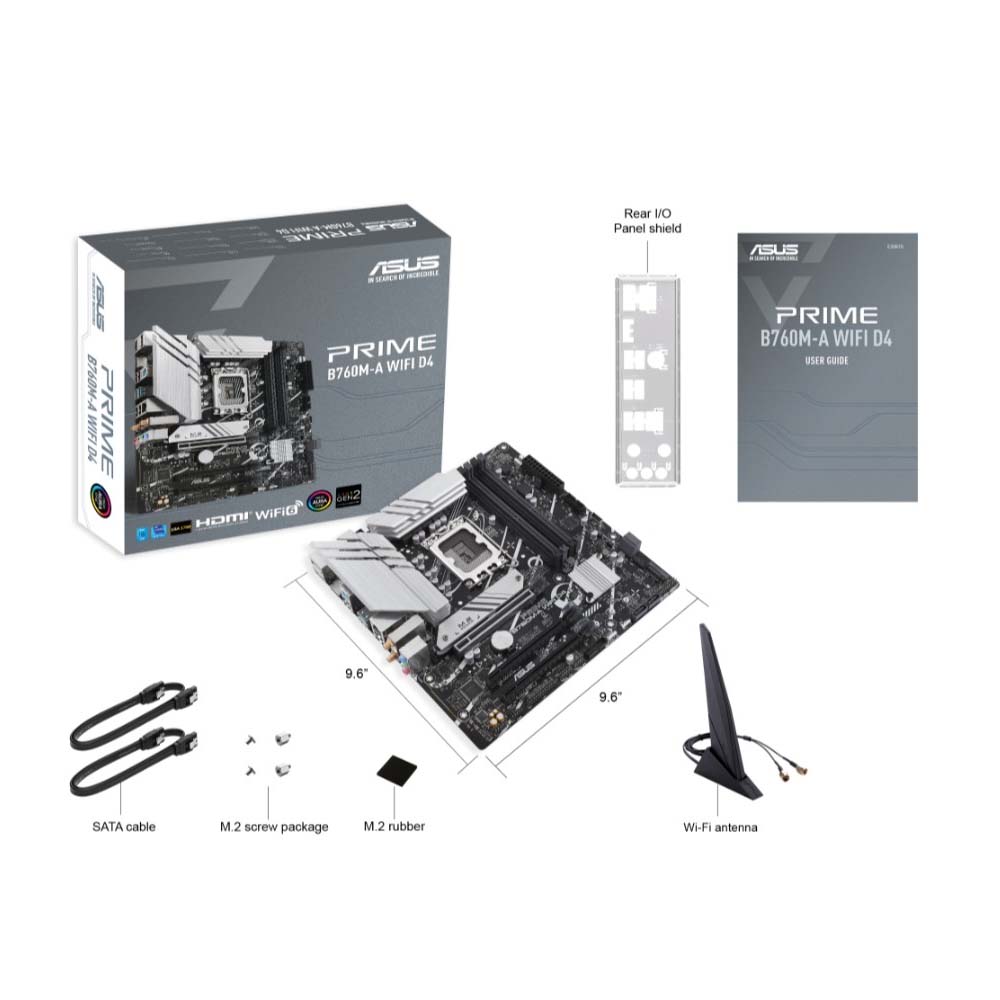

Πρόσθετα Χαρακτηριστικά | Cables: 2 x SATA 6Gb/s, Miscellaneous: 1 x ASUS Wi-Fi moving antennas/1 x I/O Shield/1 x M.2 Rubber Package/1 x Screw package for M.2 SSD, Documentation: 1 x User guide |
Βάρος | Μεικτό: 1.3Kg, Καθαρό: 1Kg |
Διαστάσεις L x W x H | Προϊόν: 244 x 244 mm |
